CPFC85-1M15NP

CPFC85-1M15NP

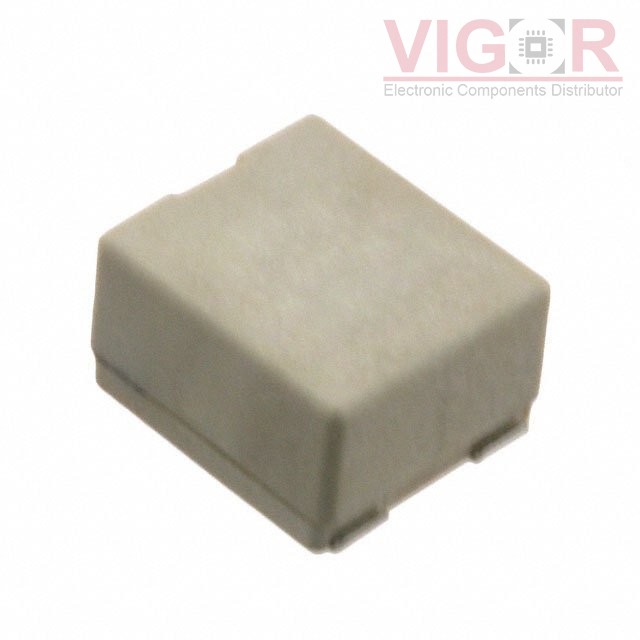

Image is for reference,
please contact us to get the real picture

Part No :

CPFC85-1M15NP

Manufacturer
Sumida Corporation
Description
COMMON MODE CHOKE 4.7MH 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
CPFC85-1M15NP PDF
Availability
0 pieces
Unit Price
$1.36400

Current price of CPFC85-1M15NP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CPFC85-1M15NP Specifications
Type Description
Series:CPFC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:4.7 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):-
DC Resistance (DCR) (Max):2Ohm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max):0.217" (5.50mm)
Package / Case:Horizontal, 4 PC Pad
