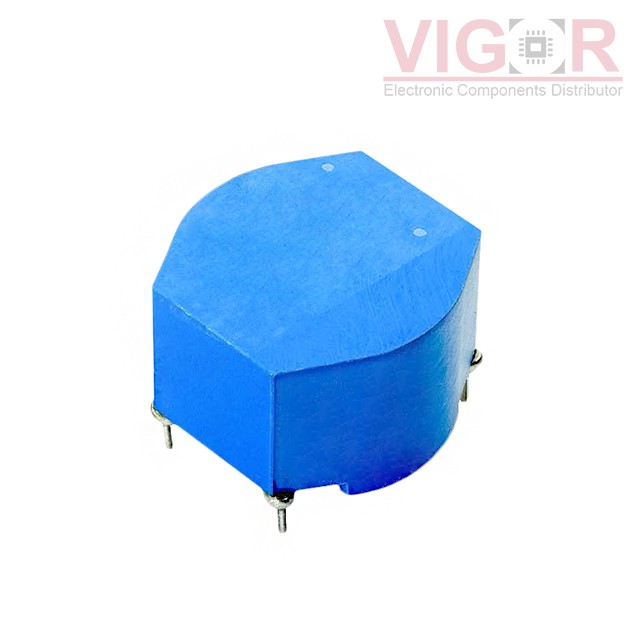

CM1011R-105

Image is for reference,
please contact us to get the real picture

Part No :: CM1011R-105

Manufacturer: API Delevan

Description: CMC 1MH 5.7A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CM1011R-105 PDF

Availability: 0 pieces

Unit Price: ~~$16.80840~~

Current price of CM1011R-105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM1011R-105 Specifications

Type	Description
Series:	CM1011R
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5.7A
DC Resistance (DCR) (Max):	18mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.098" L x 1.098" W (27.90mm x 27.90mm)
Height (Max):	0.731" (18.56mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
