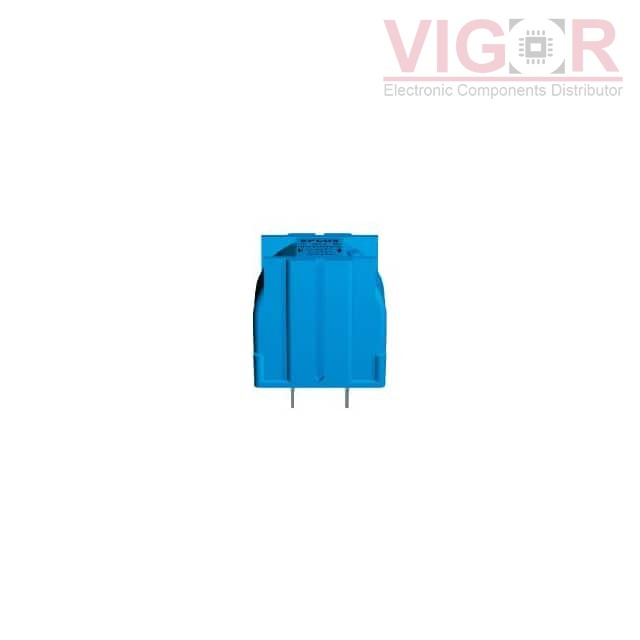

B82724J2222N021

B82724J2222N021

Image is for reference,
please contact us to get the real picture

Part No :

B82724J2222N021

Manufacturer
TDK EPCOS
Description
CMC 20MH 2.2A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
B82724J2222N021 PDF
Availability
471 pieces
Unit Price
$3.96000

Current price of B82724J2222N021 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82724J2222N021 Specifications
Type Description
Series:B82724
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:20 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2.2A
DC Resistance (DCR) (Max):250mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:1.232" L x 0.728" W (31.30mm x 18.50mm)
Height (Max):1.307" (33.20mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82724A2202N001

B82724A2202N001

CMC 6.8MH 2A 2LN TH
HOT B82732W2701B030

B82732W2701B030

CMC 39MH 700MA 2LN TH

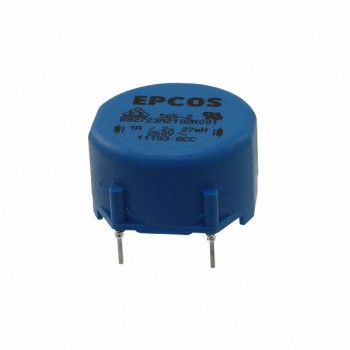

HOT B82723A2102N001
