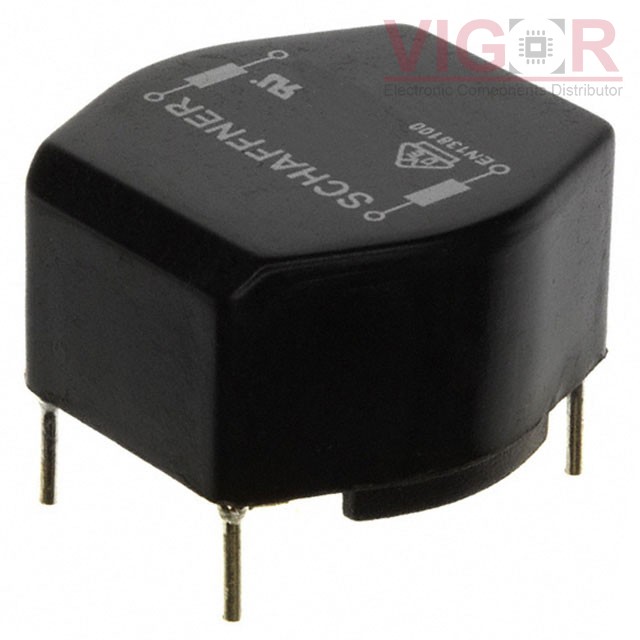

RN114-1.5-02-6M8

RN114-1.5-02-6M8

Image is for reference,
please contact us to get the real picture

Part No :

RN114-1.5-02-6M8

Manufacturer
Schaffner EMC, Inc.
Description
CMC 6.8MH 1.5A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
RN114-1.5-02-6M8 PDF
Availability
7356 pieces
Unit Price
$1.87000

Current price of RN114-1.5-02-6M8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN114-1.5-02-6M8 Specifications
Type Description
Series:RN
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:6.8 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.5A
DC Resistance (DCR) (Max):123mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 100°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max):0.531" (13.50mm)
Package / Case:Horizontal, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82792C0475N365

B82792C0475N365

CMC 4.7MH 600MA 2LN SMD

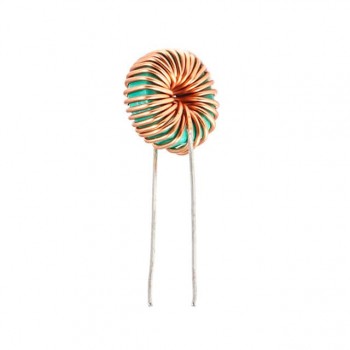

HOT SN5-300

SN5-300

NMC 25.0UH 2.0A 0.0420 OHM TH

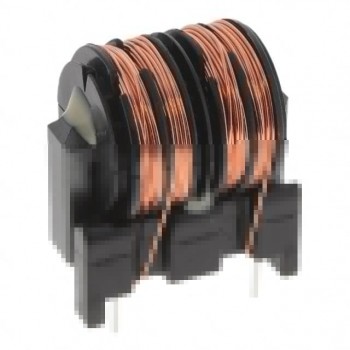

HOT SS30V-R100700
