RB8532-16-1M3

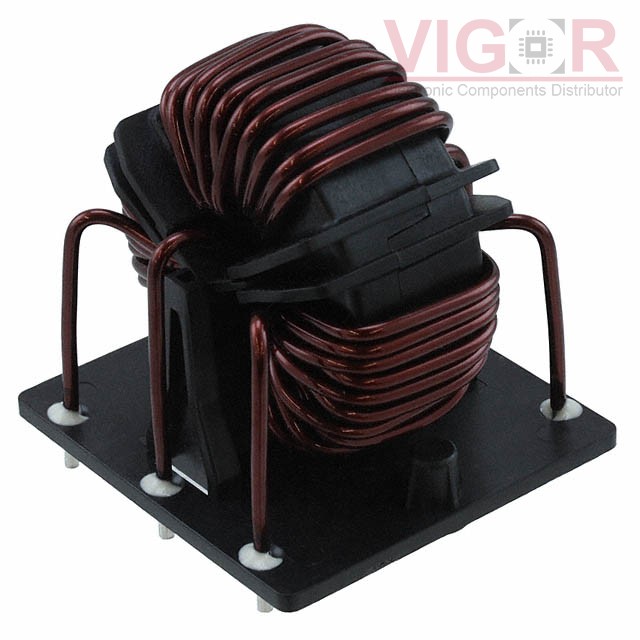

Image is for reference,
please contact us to get the real picture

Part No :: RB8532-16-1M3

Manufacturer: Schaffner EMC, Inc.

Description: CMC 1.3MH 16A 3LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: RB8532-16-1M3 PDF

Availability: 0 pieces

Unit Price: ~~$13.28000~~

Current price of RB8532-16-1M3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RB8532-16-1M3 Specifications

Type	Description
Series:	RB
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	1.3 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	16A
DC Resistance (DCR) (Max):	5.7mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.283" L x 2.165" W (58.00mm x 55.00mm)
Height (Max):	2.283" (58.00mm)
Package / Case:	Vertical, 6 PC Pin
