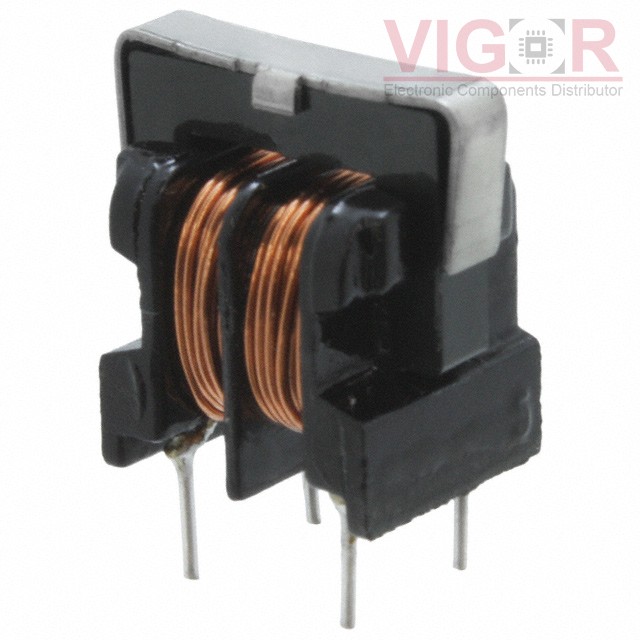

7504-RC

7504-RC

Image is for reference,
please contact us to get the real picture

Part No :

7504-RC

Manufacturer
J.W. Miller / Bourns
Description
CMC 1MH 3.6A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
7504-RC PDF
Availability
0 pieces
Unit Price
$1.27162

Current price of 7504-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7504-RC Specifications
Type Description
Series:7500
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):3.6A
DC Resistance (DCR) (Max):33mOhm
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-55°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max):1.083" (27.50mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT P0353NLT

P0353NLT

COMMON MODE CHOKE 5.6A 2LN SMD

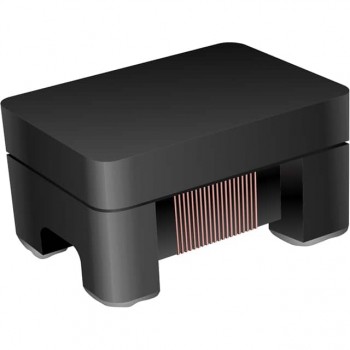

HOT CMCC0805300MT

CMCC0805300MT

CMC 0805 30R 20%

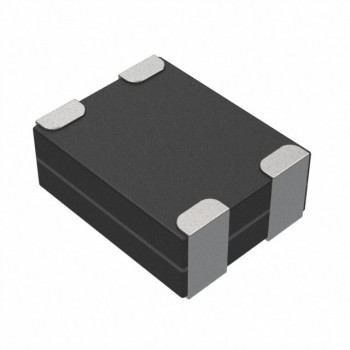

HOT LCF121002A900TG
