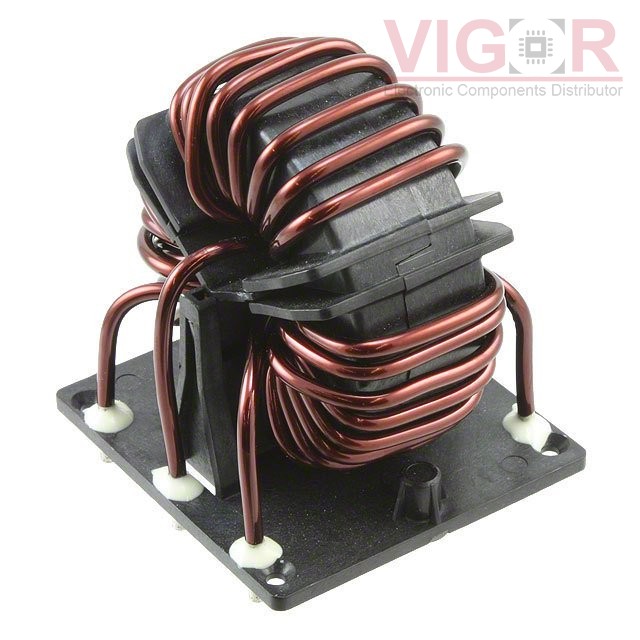

RB6532-36-0M4

Image is for reference,
please contact us to get the real picture

Part No :: RB6532-36-0M4

Manufacturer: Schaffner EMC, Inc.

Description: CMC 420UH 36A 3LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: RB6532-36-0M4 PDF

Availability: 379 pieces

Unit Price: ~~$20.59000~~

Current price of RB6532-36-0M4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RB6532-36-0M4 Specifications

Type	Description
Series:	RB
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	420 µH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	36A
DC Resistance (DCR) (Max):	4.2mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.441" L x 2.283" W (62.00mm x 58.00mm)
Height (Max):	2.756" (70.00mm)
Package / Case:	Vertical, 6 PC Pin

Please confirm the specifications of the products when ordering.
