DCM181713H-701NHF

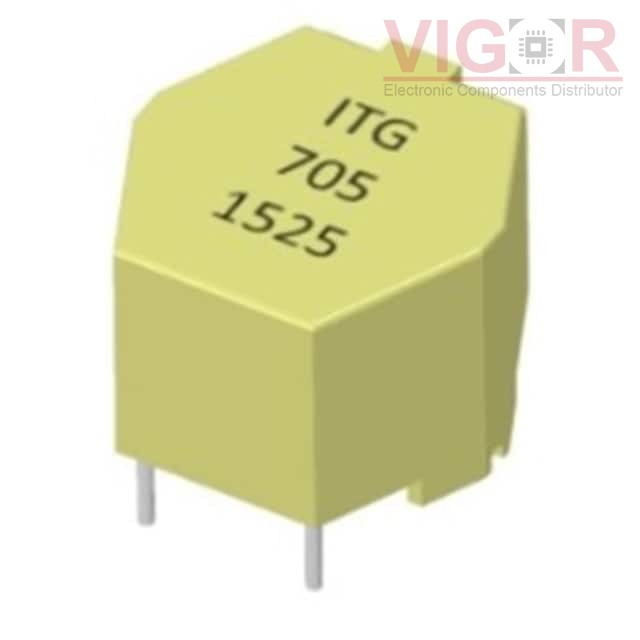

Image is for reference,
please contact us to get the real picture

Part No :: DCM181713H-701NHF

Manufacturer: ITG Electronics, Inc.

Description: CMC 700UH 5A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: DCM181713H-701NHF PDF

Availability: 48 pieces

Unit Price: ~~$4.17000~~

Current price of DCM181713H-701NHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DCM181713H-701NHF Specifications

Type	Description
Series:	DCM181713H
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	700 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	27mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 130°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.709" L x 0.689" W (18.00mm x 17.50mm)
Height (Max):	0.512" (13.00mm)
Package / Case:	Horizontal, 4 PC Pin
