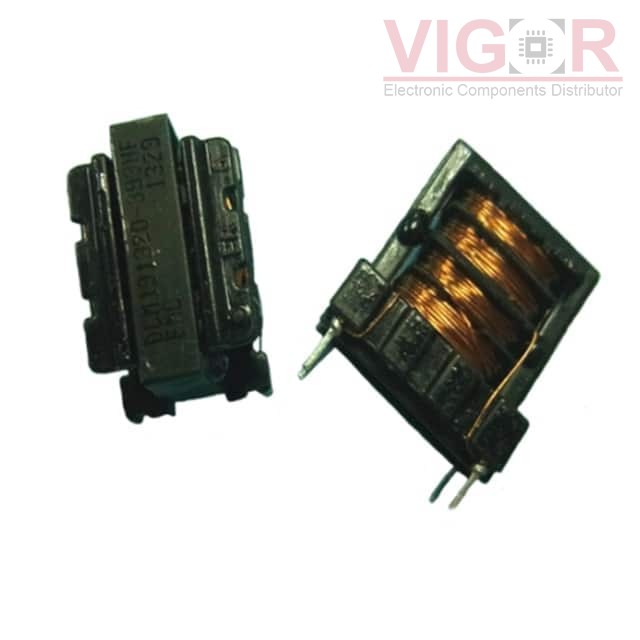

DCM191320V-153NHF

Image is for reference,
please contact us to get the real picture

Part No :: DCM191320V-153NHF

Manufacturer: ITG Electronics, Inc.

Description: CMC 15MH 630MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: DCM191320V-153NHF PDF

Availability: 45 pieces

Unit Price: ~~$2.58000~~

Current price of DCM191320V-153NHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DCM191320V-153NHF Specifications

Type	Description
Series:	DCM191320V
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	15 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	630mA
DC Resistance (DCR) (Max):	960mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 130°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.728" L x 0.512" W (18.50mm x 13.00mm)
Height (Max):	0.787" (20.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ALFT-09V-502

COMMON MODE CHOKE 500MA 2LN TH

HOT

EXC-24CG900U

CMC 100MA 2LN 90 OHM SMD

HOT

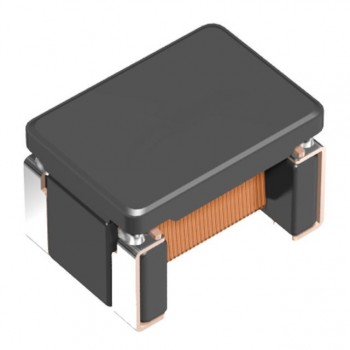

ACT45B-101-2P-TL003
