CPFC74NP-PS02H2A20

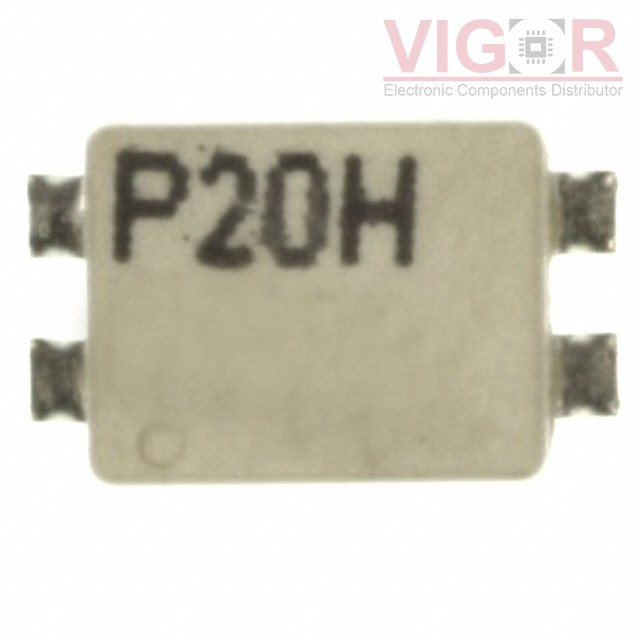

Image is for reference,
please contact us to get the real picture

Part No :

CPFC74NP-PS02H2A20

Manufacturer
Sumida Corporation
Description
CMC 2A 2LN 200 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
CPFC74NP-PS02H2A20 PDF
Availability
28030 pieces
Unit Price
$1.22000

Current price of CPFC74NP-PS02H2A20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:CPFC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:200 Ohms @ 20 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2A
DC Resistance (DCR) (Max):120mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max):0.200" (5.08mm)
Package / Case:Vertical, 4 Gull Wing
