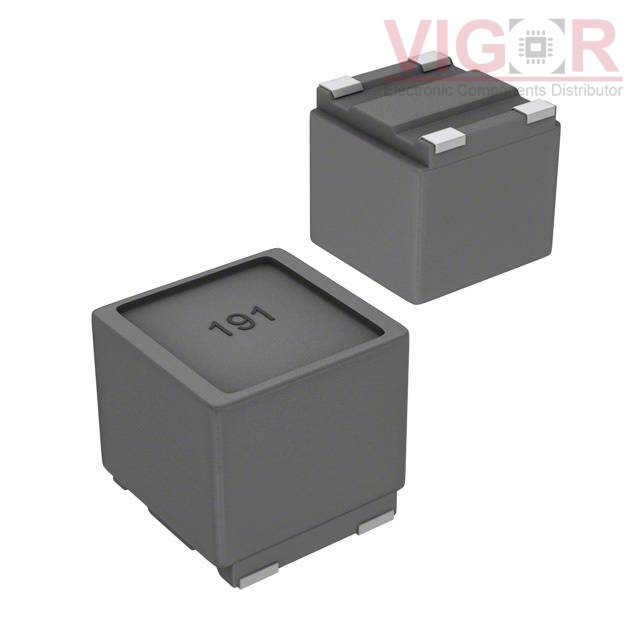

SRF0504-191Y

SRF0504-191Y

Image is for reference,
please contact us to get the real picture

Part No :

SRF0504-191Y

Manufacturer
J.W. Miller / Bourns
Description
CMC 600NH 5A 2LN 190 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
SRF0504-191Y PDF
Availability
32548 pieces
Unit Price
$1.47000

Current price of SRF0504-191Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF0504-191Y Specifications
Type Description
Series:SRF0504
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:190 Ohms @ 100 MHz
Inductance @ Frequency:600 nH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):5A
DC Resistance (DCR) (Max):20mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.205" L x 0.197" W (5.20mm x 5.00mm)
Height (Max):0.189" (4.80mm)
Package / Case:Horizontal, 4 PC Pad
