RN214-2-02-2M2

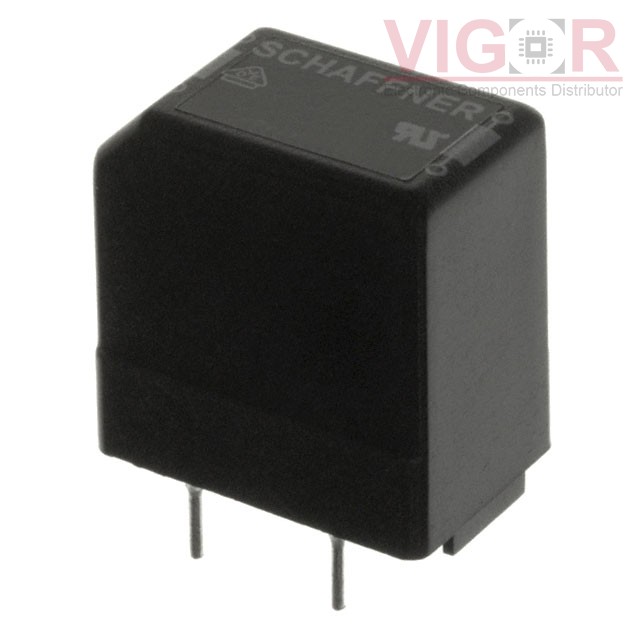

Image is for reference,
please contact us to get the real picture

Part No :: RN214-2-02-2M2

Manufacturer: Schaffner EMC, Inc.

Description: CMC 2.2MH 2A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: RN214-2-02-2M2 PDF

Availability: 0 pieces

Unit Price: ~~$1.87000~~

Current price of RN214-2-02-2M2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN214-2-02-2M2 Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	67mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max):	0.996" (25.30mm)
Package / Case:	Vertical, 4 PC Pin
