ELF-18D227F

ELF-18D227F

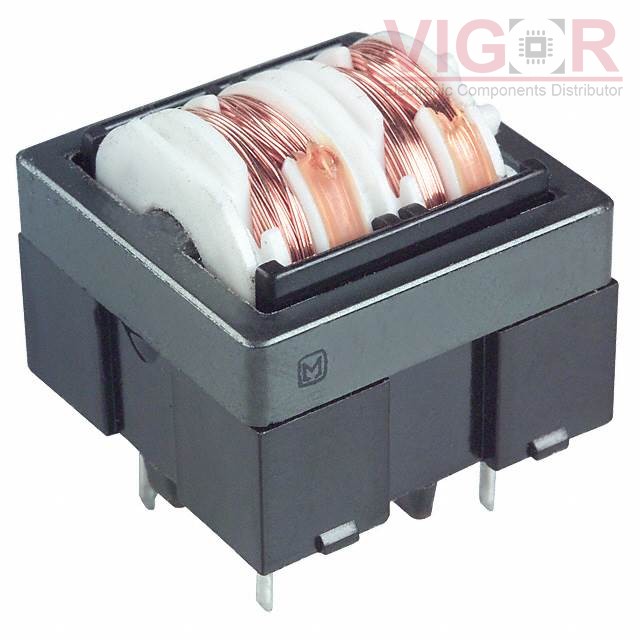

Image is for reference,
please contact us to get the real picture

Part No :

ELF-18D227F

Manufacturer
Panasonic
Description
CMC 4.7MH 1A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
ELF-18D227F PDF
Availability
43 pieces
Unit Price
$2.63000

Current price of ELF-18D227F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-18D227F Specifications
Type Description
Series:H
Package:Bulk
Part Status:Obsolete
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:4.7 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1A
DC Resistance (DCR) (Max):294mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-20°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.787" L x 0.827" W (20.00mm x 21.00mm)
Height (Max):0.787" (20.00mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82614R2172A030

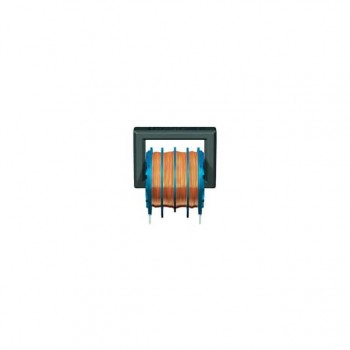

B82614R2172A030

CMC 1.5MH 1.7A 2LN TH
HOT ECMF04-4HSWM10Y

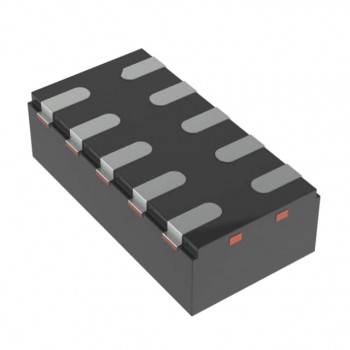

ECMF04-4HSWM10Y
