TCM0605S-120-2P-T201

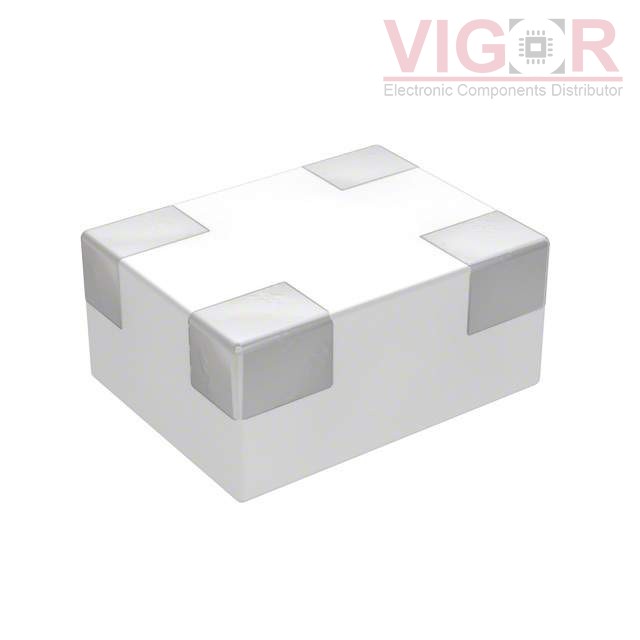

Image is for reference,
please contact us to get the real picture

Part No :: TCM0605S-120-2P-T201

Manufacturer: TDK Corporation

Description: CMC 100MA 2LN 12 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: TCM0605S-120-2P-T201 PDF

Availability: 552 pieces

Unit Price: ~~$0.75000~~

Current price of TCM0605S-120-2P-T201 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TCM0605S-120-2P-T201 Specifications

Type	Description
Series:	TCM-S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	12 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	1Ohm
Voltage Rating - DC:	10V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max):	0.014" (0.35mm)
Package / Case:	0202 (0505 Metric), 4 PC Pad

Please confirm the specifications of the products when ordering.
