RN202-0.3-02-22M

RN202-0.3-02-22M

Image is for reference,
please contact us to get the real picture

Part No :

RN202-0.3-02-22M

Manufacturer
Schaffner EMC, Inc.
Description
CMC 22MH 300MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
RN202-0.3-02-22M PDF
Availability
0 pieces
Unit Price
$1.76000

Current price of RN202-0.3-02-22M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN202-0.3-02-22M Specifications
Type Description
Series:RN
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):300mA
DC Resistance (DCR) (Max):1.3Ohm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 100°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max):0.543" (13.80mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82722A2501N021

B82722A2501N021

CMC 39MH 500MA 2LN TH

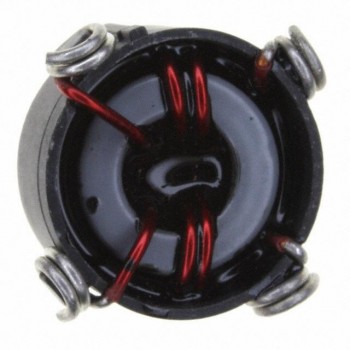

HOT CM6296-253

CM6296-253

CMC 25UH 10A 2LN SMD

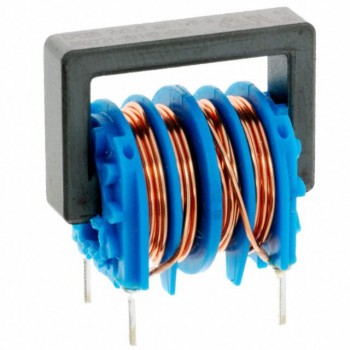

HOT B82731M2501A030
