RN112-0.5-02-27M

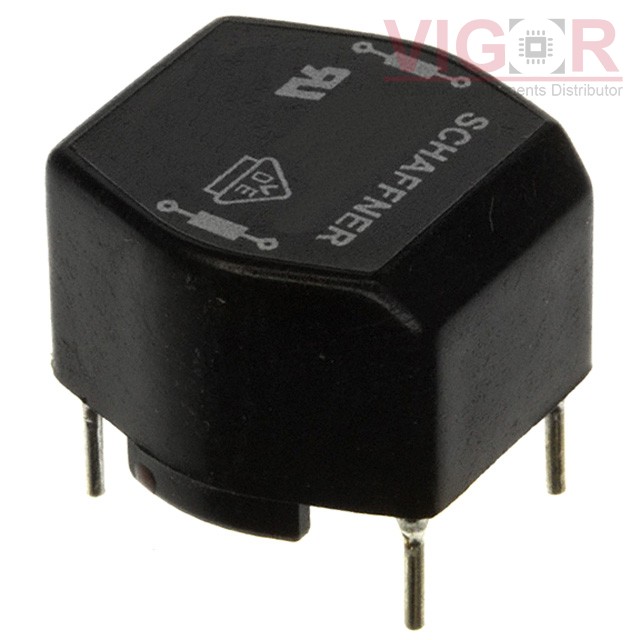

Image is for reference,
please contact us to get the real picture

Part No :: RN112-0.5-02-27M

Manufacturer: Schaffner EMC, Inc.

Description: CMC 27MH 500MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: RN112-0.5-02-27M PDF

Availability: 4565 pieces

Unit Price: ~~$1.81000~~

Current price of RN112-0.5-02-27M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN112-0.5-02-27M Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	27 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	1.2Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max):	0.508" (12.90mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
