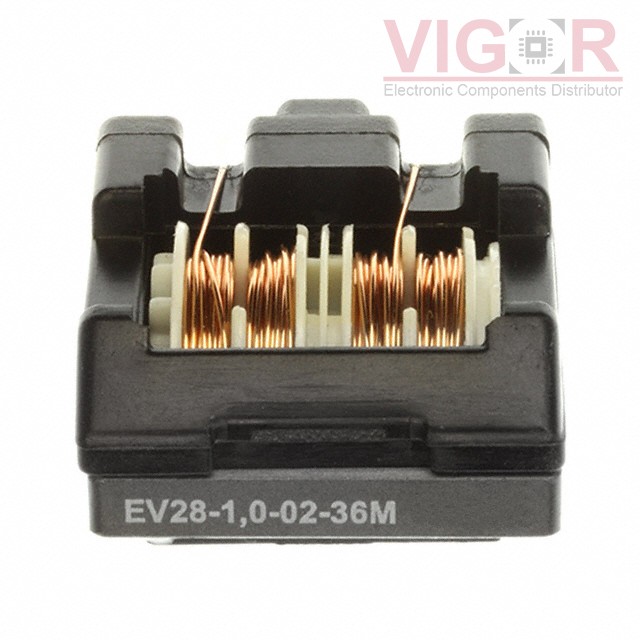

EV28-1.0-02-36M

EV28-1.0-02-36M

Image is for reference,
please contact us to get the real picture

Part No :

EV28-1.0-02-36M

Manufacturer
Schaffner EMC, Inc.
Description
COMMON MODE CHOKE 36MH 1A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
EV28-1.0-02-36M PDF
Availability
35 pieces
Unit Price
$3.32000

Current price of EV28-1.0-02-36M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EV28-1.0-02-36M Specifications
Type Description
Series:EV
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:36 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1A
DC Resistance (DCR) (Max):591mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-25°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max):1.406" (35.70mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SCR31-010-S1R1A035JH

SCR31-010-S1R1A035JH

CMC 3.5MH,1A, 0.024OHM

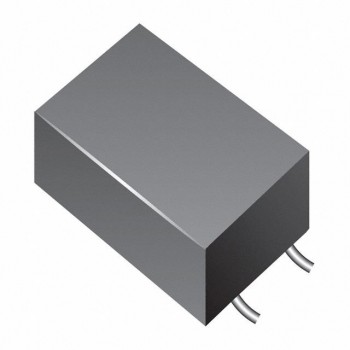

HOT DR221-513AE

DR221-513AE

CMC 50UH 200MA 2LN SMD

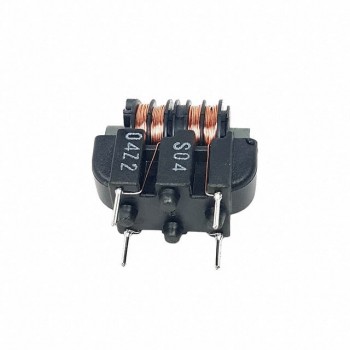

HOT SSR10VS-04745
