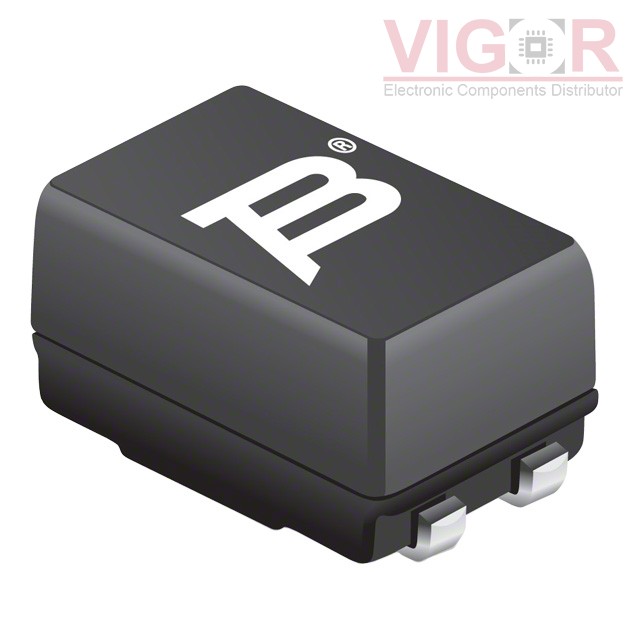

SRF0905-500Y

Image is for reference,
please contact us to get the real picture

Part No :: SRF0905-500Y

Manufacturer: J.W. Miller / Bourns

Description: CMC 50UH 800MA 2LN 1.5 KOHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 26 - Aug 30 2025

DataSheet: SRF0905-500Y PDF

Availability: 1705 pieces

Unit Price: ~~$1.39000~~

Current price of SRF0905-500Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF0905-500Y Specifications

Type	Description
Series:	SRF0905
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	1.5 kOhms @ 20 MHz
Inductance @ Frequency:	50 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	320mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max):	0.209" (5.30mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

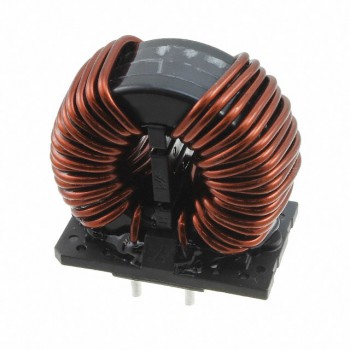

7448061507

COMMON MODE CHOKE 7MH 15A 2LN TH

HOT

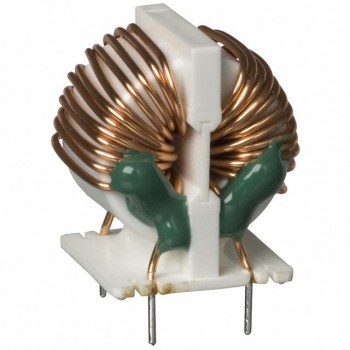

PFC2225BNP-152
