EV35-5.0-02-3M6

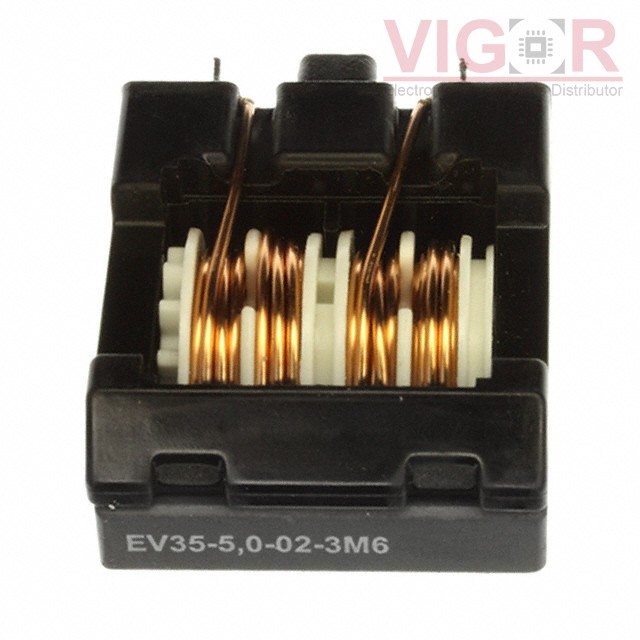

Image is for reference,
please contact us to get the real picture

Part No :: EV35-5.0-02-3M6

Manufacturer: Schaffner EMC, Inc.

Description: CMC 3.6MH 5A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: EV35-5.0-02-3M6 PDF

Availability: 386 pieces

Unit Price: ~~$4.95000~~

Current price of EV35-5.0-02-3M6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EV35-5.0-02-3M6 Specifications

Type	Description
Series:	EV
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.6 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	33mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max):	1.681" (42.70mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
