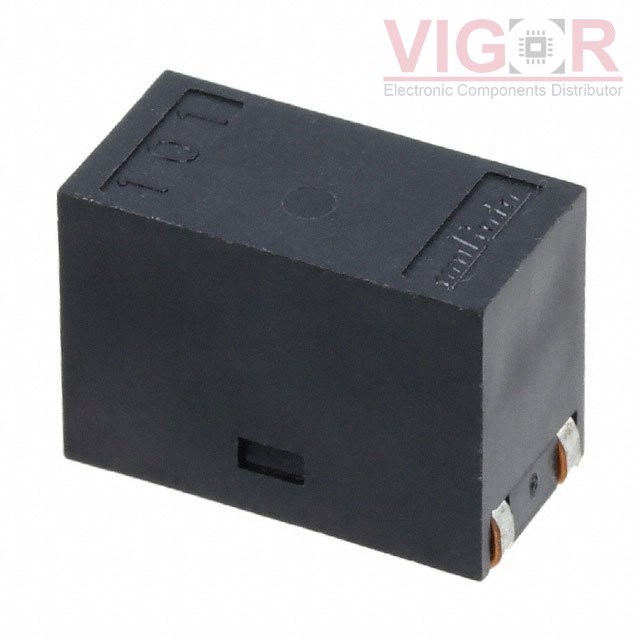

PLT10HH101150PNL

PLT10HH101150PNL

Image is for reference,
please contact us to get the real picture

Part No :

PLT10HH101150PNL

Manufacturer
TOKO / Murata
Description
CMC 15A 2LN 100 OHM SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
PLT10HH101150PNL PDF
Availability
4490 pieces
Unit Price
$12.96000

Current price of PLT10HH101150PNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PLT10HH101150PNL Specifications
Type Description
Series:PLT10H
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:100 Ohms @ 10 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):15A
DC Resistance (DCR) (Max):2.3mOhm
Voltage Rating - DC:300V
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 125°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.508" L x 0.358" W (12.90mm x 9.10mm)
Height (Max):0.370" (9.40mm)
Package / Case:Vertical, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LCF201204C101TG

LCF201204C101TG

CMC 4LN 130MA 100 OHM SMD

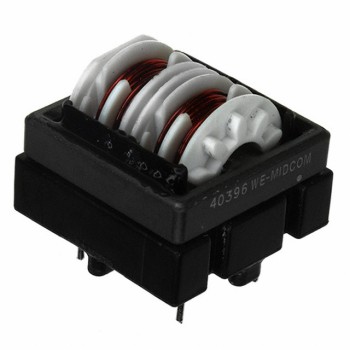

HOT 7448640396
