RT8522-16-4M0

RT8522-16-4M0

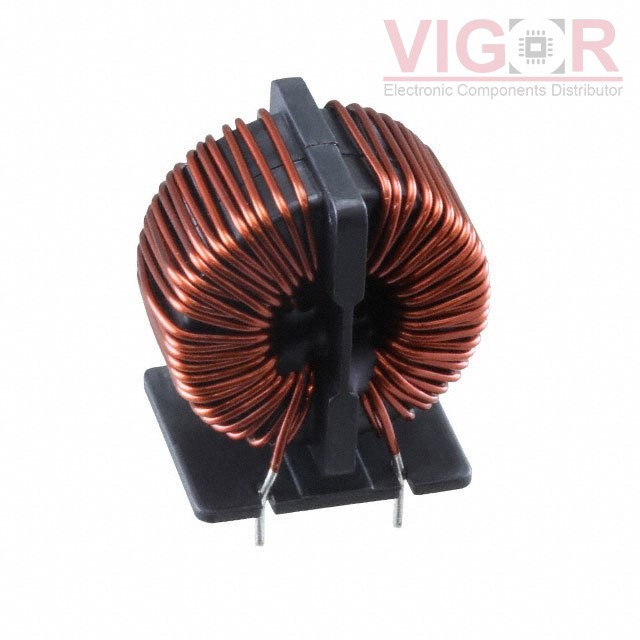

Image is for reference,
please contact us to get the real picture

Part No :

RT8522-16-4M0

Manufacturer
Schaffner EMC, Inc.
Description
COMMON MODE CHOKE 4MH 16A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
RT8522-16-4M0 PDF
Availability
144 pieces
Unit Price
$10.08000

Current price of RT8522-16-4M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RT8522-16-4M0 Specifications
Type Description
Series:RT
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:4 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):16A
DC Resistance (DCR) (Max):10mOhm (Typ)
Voltage Rating - DC:425V
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max):2.047" (52.00mm)
Package / Case:Vertical, 4 PC Pin
