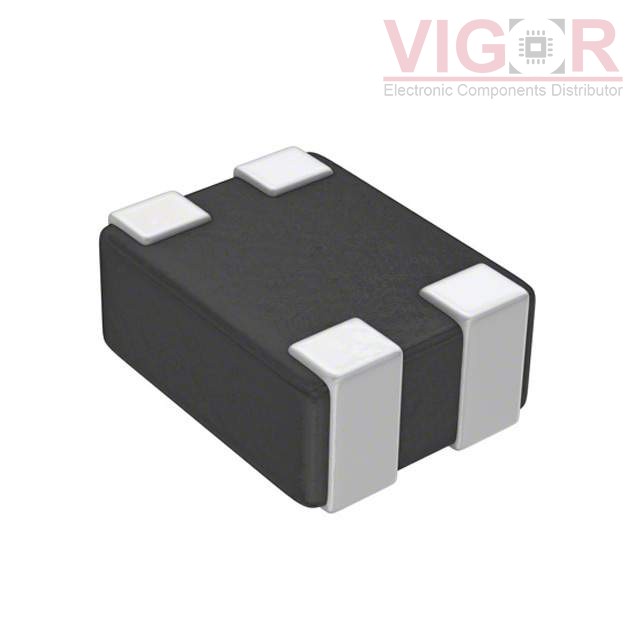

MCZ1210AH301L2

Image is for reference,
please contact us to get the real picture

Part No :: MCZ1210AH301L2

Manufacturer: TDK Corporation

Description: CMC 100MA 2LN 300 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: MCZ1210AH301L2 PDF

Availability: 11578 pieces

Unit Price: ~~$0.50000~~

Current price of MCZ1210AH301L2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MCZ1210AH301L2 Specifications

Type	Description
Series:	MCZ-AH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	300 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	4.5Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max):	0.024" (0.60mm)
Package / Case:	0504 (1210 Metric), 4 Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

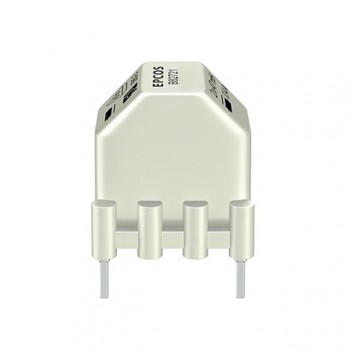

B82721K2501N001

CMC 18MH 500MA 2LN TH

HOT

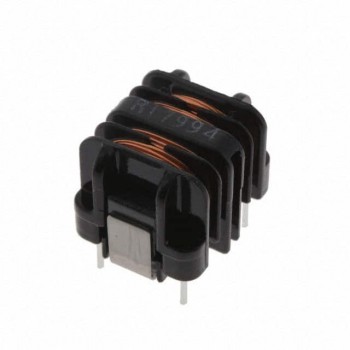

SU10VFC-R17016

CMC 1.6MH,1.7A, 0.21OHM

HOT

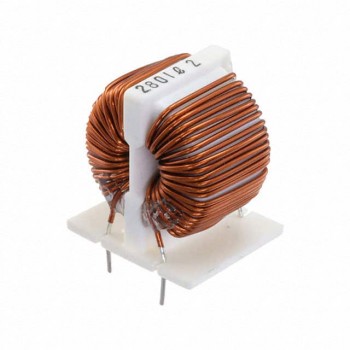

SC-05-21J
