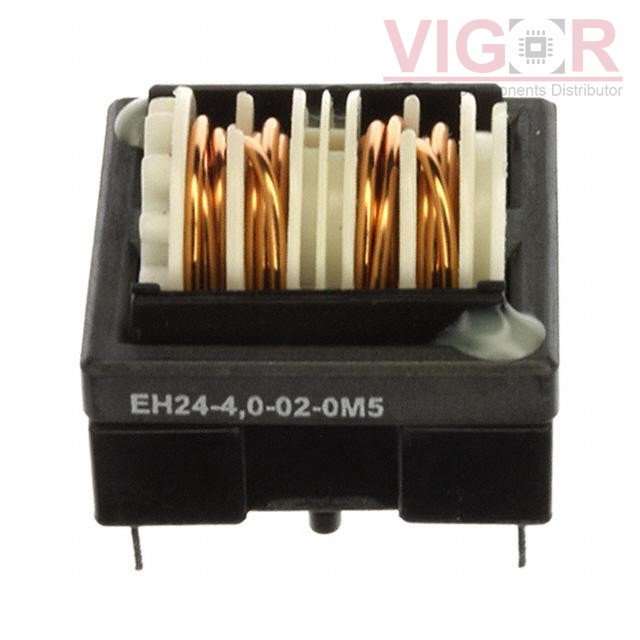

EH24-4.0-02-0M5

EH24-4.0-02-0M5

Image is for reference,
please contact us to get the real picture

Part No :

EH24-4.0-02-0M5

Manufacturer
Schaffner EMC, Inc.
Description
CMC 500UH 4A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
EH24-4.0-02-0M5 PDF
Availability
487 pieces
Unit Price
$2.54000

Current price of EH24-4.0-02-0M5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EH24-4.0-02-0M5 Specifications
Type Description
Series:EH
Package:Tube
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:500 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):4A
DC Resistance (DCR) (Max):16mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-25°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max):0.827" (21.00mm)
Package / Case:Horizontal, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82720H0015A035

B82720H0015A035

CMC 68MH 200MA 2LN TH

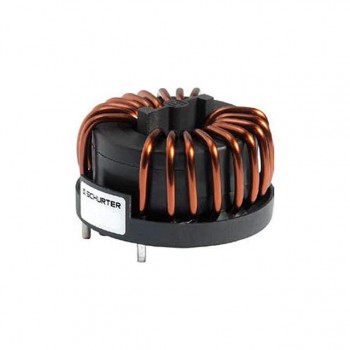

HOT DKIH-3252-409M-NK

DKIH-3252-409M-NK

COMMON MODE CHOKE 40A 2LN TH

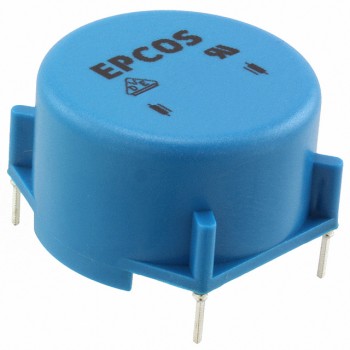

HOT B82724A2402N001
