EV28-4.0-02-2M3

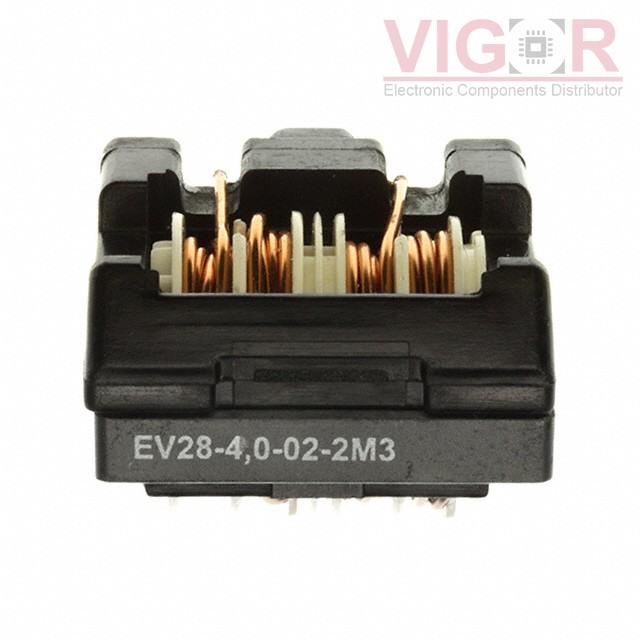

Image is for reference,
please contact us to get the real picture

Part No :: EV28-4.0-02-2M3

Manufacturer: Schaffner EMC, Inc.

Description: CMC 2.3MH 4A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: EV28-4.0-02-2M3 PDF

Availability: 0 pieces

Unit Price: ~~$1.77120~~

Current price of EV28-4.0-02-2M3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EV28-4.0-02-2M3 Specifications

Type	Description
Series:	EV
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	40mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max):	1.406" (35.70mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
