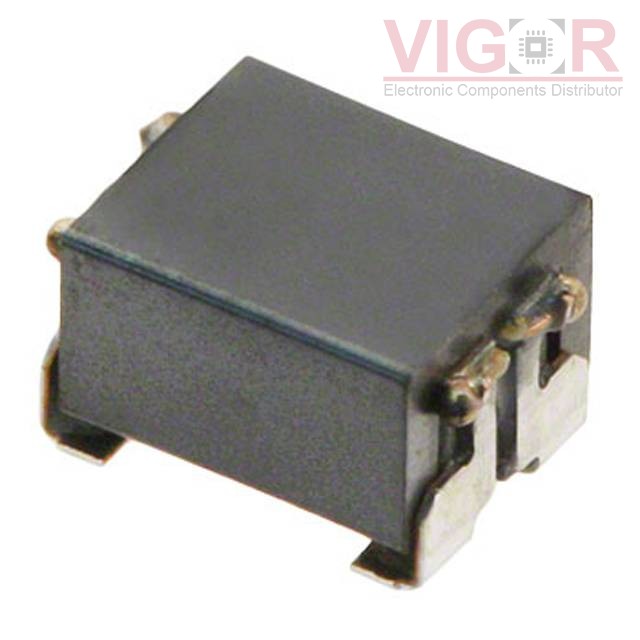

B82789C223N1

B82789C223N1

Image is for reference,
please contact us to get the real picture

Part No :

B82789C223N1

Manufacturer
TDK EPCOS
Description
CMC 22UH 250MA 2LN SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
B82789C223N1 PDF
Availability
0 pieces
Unit Price
$1.01714

Current price of B82789C223N1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82789C223N1 Specifications
Type Description
Series:B82789
Package:Tape & Reel (TR)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):250mA
DC Resistance (DCR) (Max):580mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-55°C ~ 125°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.205" L x 0.126" W (5.20mm x 3.20mm)
Height (Max):0.118" (3.00mm)
Package / Case:Horizontal, 4 L-Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LCFE121002A120TG

LCFE121002A120TG

CMC 2LN 100MA 12 OHM SMD
HOT SC-09-E075JH

SC-09-E075JH

CMC 0.75MH,9A, 0.009OHM

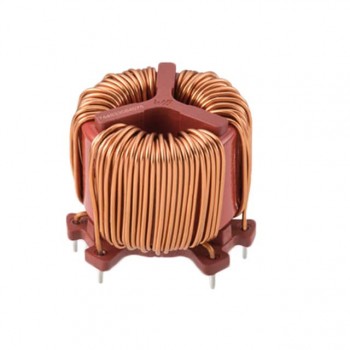

HOT 744833084075
