S14100037

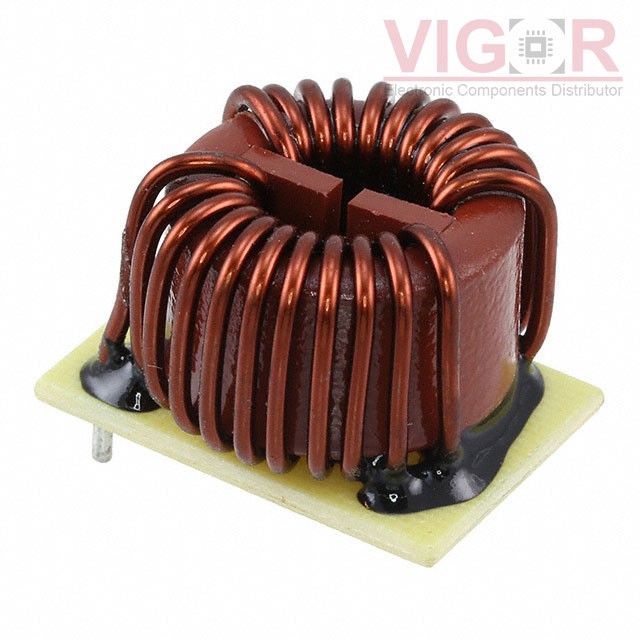

Image is for reference,
please contact us to get the real picture

Part No :: S14100037

Manufacturer: Würth Elektronik Midcom

Description: COMMON MODE CHOKE 1MH 15A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: S14100037 PDF

Availability: 452 pieces

Unit Price: ~~$4.18000~~

Current price of S14100037 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S14100037 Specifications

Type	Description
Series:	WE-CMBH
Package:	Tray
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	15A
DC Resistance (DCR) (Max):	7.5mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.220" L x 1.102" W (31.00mm x 28.00mm)
Height (Max):	0.827" (21.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
