744223

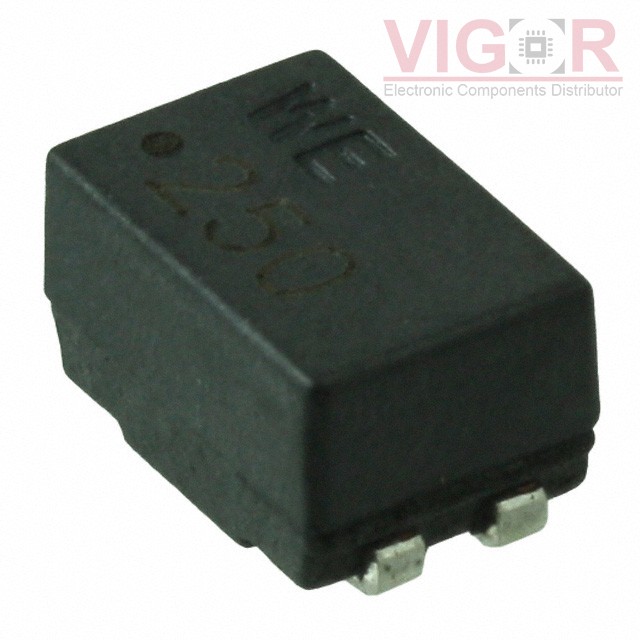

Image is for reference,
please contact us to get the real picture

Part No :: 744223

Manufacturer: Würth Elektronik Midcom

Description: CMC 500UH 1A 2LN 3.3 KOHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: 744223 PDF

Availability: 7128 pieces

Unit Price: ~~$2.46000~~

Current price of 744223 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744223 Specifications

Type	Description
Series:	WE-SL2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	3.3 kOhms @ 6 MHz
Inductance @ Frequency:	500 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	150mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max):	0.209" (5.30mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SSR10VS-05495

CMC 49.5MH 0.5A 1.6OHM WIDE IMPE

HOT

PHBC8S-0R6A0024V

NMC 23.5UH 2A 0.0411OHM TH

HOT

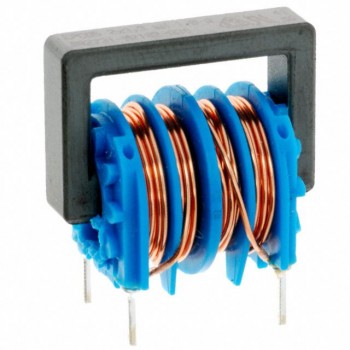

B82734R2172B030
