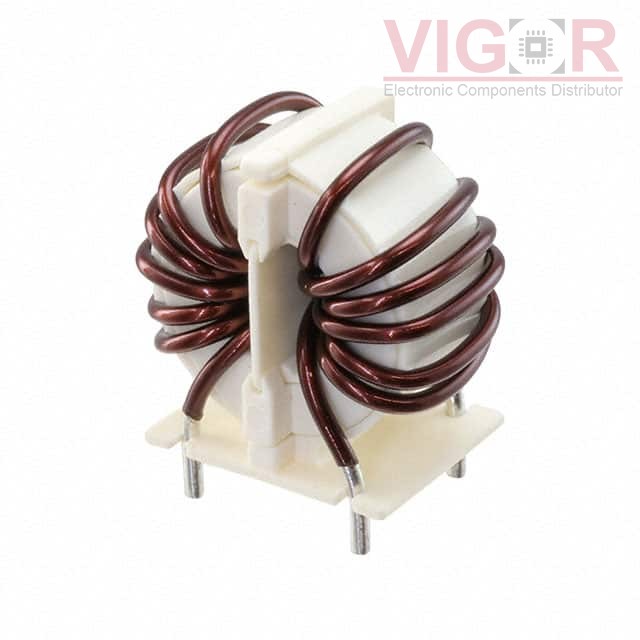

SC-20-01J-A

Image is for reference,
please contact us to get the real picture

Part No :: SC-20-01J-A

Manufacturer: KEMET

Description: CMC 0.15MH,20A, 0.004OHM

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: SC-20-01J-A PDF

Availability: 178 pieces

Unit Price: ~~$5.13000~~

Current price of SC-20-01J-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SC-20-01J-A Specifications

Type	Description
Series:	*
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	150 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	20A
DC Resistance (DCR) (Max):	4mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.378" L x 0.945" W (35.00mm x 24.00mm)
Height (Max):	1.339" (34.00mm)
Package / Case:	Vertical, 4 PC Pin
