CMF23V-153191-B

CMF23V-153191-B

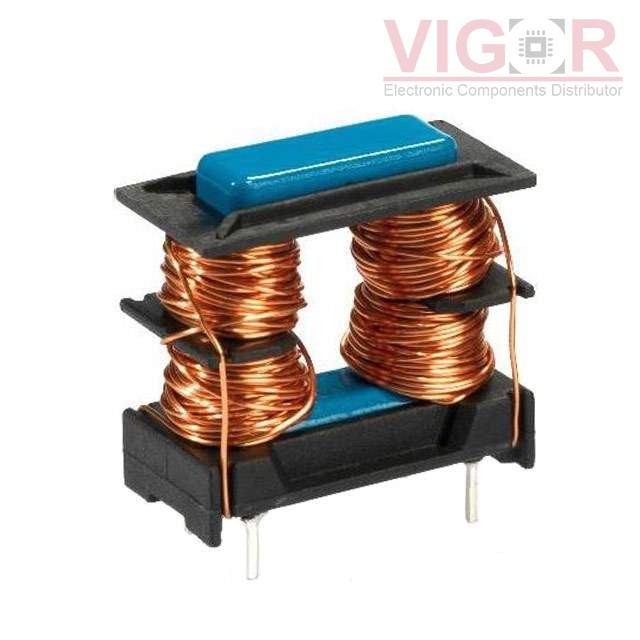

Image is for reference,
please contact us to get the real picture

Part No :

CMF23V-153191-B

Manufacturer
Triad Magnetics
Description
CMC 15MH 1.9A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
CMF23V-153191-B PDF
Availability
449320 pieces
Unit Price
$3.12000

Current price of CMF23V-153191-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMF23V-153191-B Specifications
Type Description
Series:CMF
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:15 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.9A
DC Resistance (DCR) (Max):306mOhm
Voltage Rating - DC:-
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.142" L x 0.591" W (29.00mm x 15.00mm)
Height (Max):1.063" (27.00mm)
Package / Case:Vertical, 4 PC Pin
