SNT-D20TF

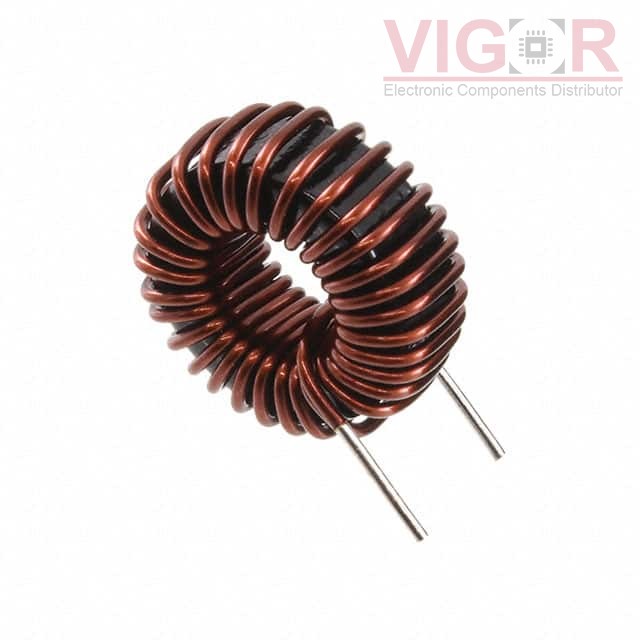

Image is for reference,
please contact us to get the real picture

Part No :: SNT-D20TF

Manufacturer: KEMET

Description: NMC, TROID, 10UH, 45OHM

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SNT-D20TF PDF

Availability: 0 pieces

Unit Price: ~~$1.38012~~

Current price of SNT-D20TF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SNT-D20TF Specifications

Type	Description
Series:	SNT
Package:	Tape & Box (TB)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	45Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-20°C ~ 60°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max):	0.500" (12.70mm)
Package / Case:	Vertical, 2 PC Pin
