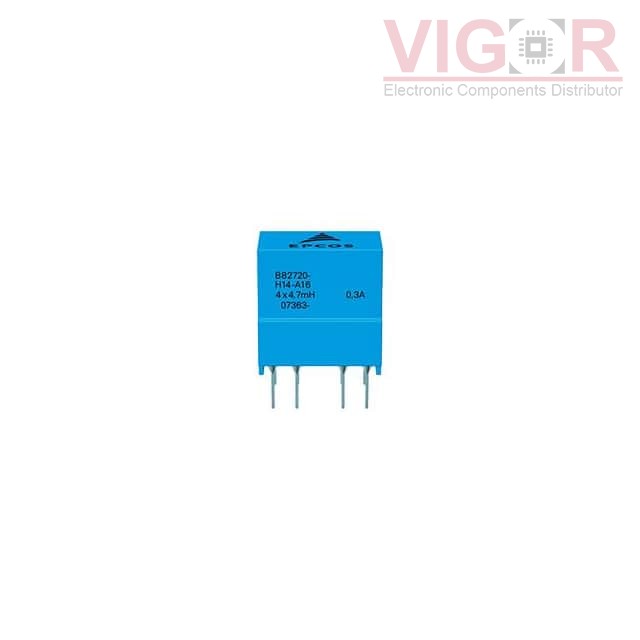

B82720H0014A013

Image is for reference,
please contact us to get the real picture

Part No :: B82720H0014A013

Manufacturer: TDK EPCOS

Description: CMC 5MH 300MA 4LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: B82720H0014A013 PDF

Availability: 0 pieces

Unit Price: ~~$1.71360~~

Current price of B82720H0014A013 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82720H0014A013 Specifications

Type	Description
Series:	B82720
Package:	Tray
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	-
Inductance @ Frequency:	5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	550mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.512" L x 0.299" W (13.00mm x 7.60mm)
Height (Max):	0.563" (14.30mm)
Package / Case:	Vertical, 8 PC Pin
