DR334A-513AE

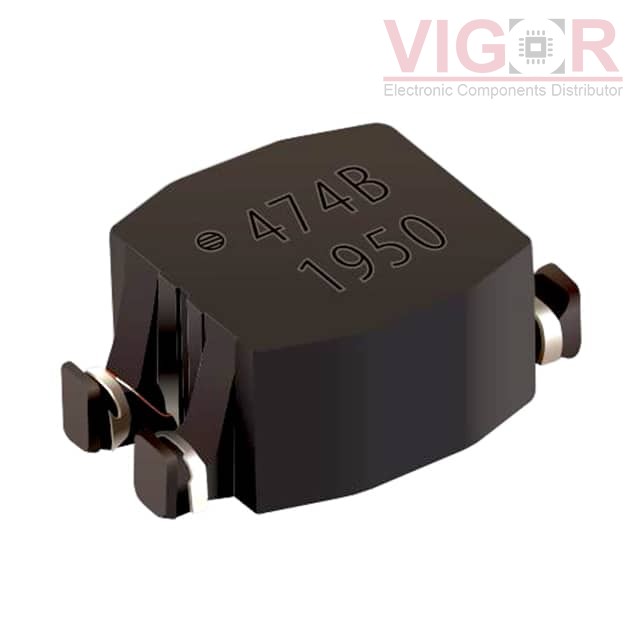

Image is for reference,
please contact us to get the real picture

Part No :: DR334A-513AE

Manufacturer: J.W. Miller / Bourns

Description: CMC LINE FILTER SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: DR334A-513AE PDF

Availability: 495 pieces

Unit Price: ~~$1.23000~~

Current price of DR334A-513AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DR334A-513AE Specifications

Type	Description
Series:	DR334A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	1.5 kOhms @ 20 MHz
Inductance @ Frequency:	51 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	300mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 135°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.228" W (9.00mm x 5.80mm)
Height (Max):	0.142" (3.60mm)
Package / Case:	-

Please confirm the specifications of the products when ordering.
