DR334A-253AE

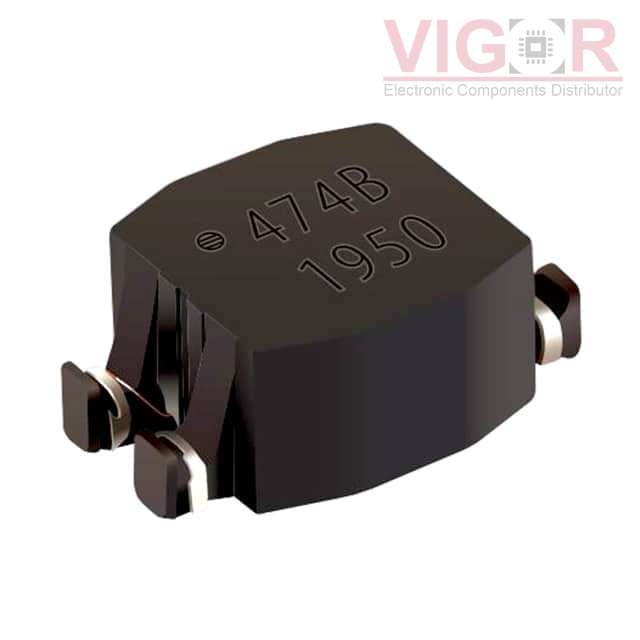

Image is for reference,
please contact us to get the real picture

Part No :

DR334A-253AE

Manufacturer
J.W. Miller / Bourns
Description
CMC LINE FILTER SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
DR334A-253AE PDF
Availability
500 pieces
Unit Price
$1.23000

Current price of DR334A-253AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:DR334A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:700 Ohms @ 3 MHz
Inductance @ Frequency:25 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):200mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-40°C ~ 135°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.354" L x 0.228" W (9.00mm x 5.80mm)
Height (Max):0.142" (3.60mm)
Package / Case:-
