DLP0QSA070HL2D

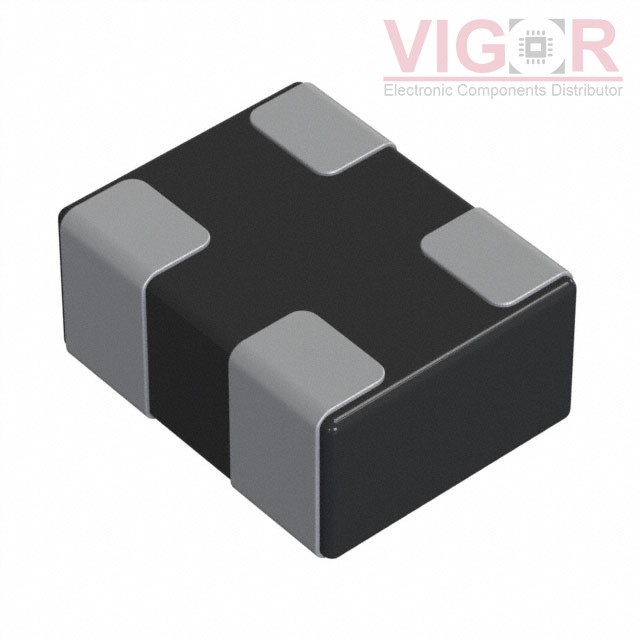

Image is for reference,
please contact us to get the real picture

Part No :: DLP0QSA070HL2D

Manufacturer: TOKO / Murata

Description: CMC 100MA 2LN 7 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: DLP0QSA070HL2D PDF

Availability: 0 pieces

Unit Price: ~~$0.37800~~

Current price of DLP0QSA070HL2D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DLP0QSA070HL2D Specifications

Type	Description
Series:	DLP0Q
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	7 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	875mOhm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max):	0.014" (0.35mm)
Package / Case:	0202 (0505 Metric), 4 PC Pad

Please confirm the specifications of the products when ordering.
