PL8209NL

PL8209NL

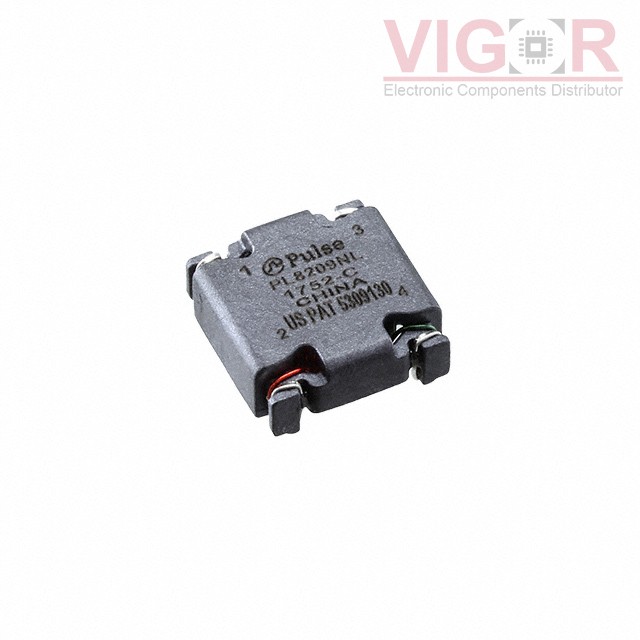

Image is for reference,
please contact us to get the real picture

Part No :

PL8209NL

Manufacturer
PulseR (iNRCORE
Description
COMMON MODE CHOKE 1.63A 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
PL8209NL PDF
Availability
220 pieces
Unit Price
$8.14000

Current price of PL8209NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PL8209NL Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.63A
DC Resistance (DCR) (Max):110mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 130°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max):0.215" (5.46mm)
Package / Case:Horizontal, 4 PC Pad
