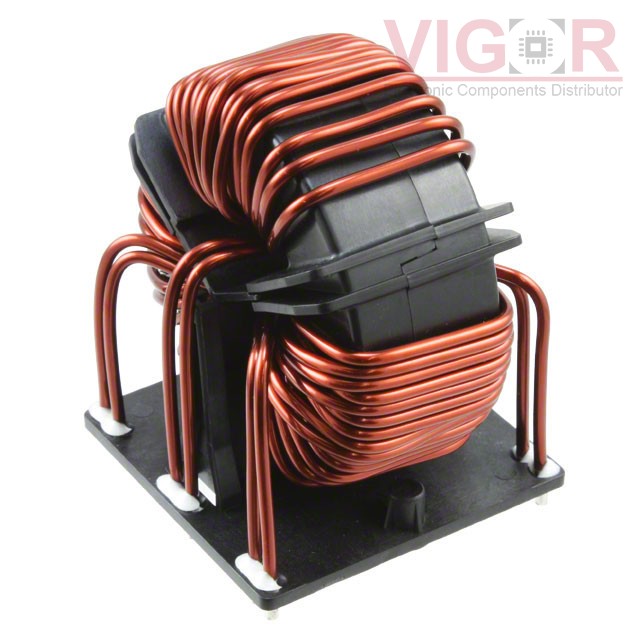

RB8532-50-0M3

Image is for reference,
please contact us to get the real picture

Part No :: RB8532-50-0M3

Manufacturer: Schaffner EMC, Inc.

Description: CMC 330UH 50A 3LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: RB8532-50-0M3 PDF

Availability: 0 pieces

Unit Price: ~~$31.45438~~

Current price of RB8532-50-0M3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RB8532-50-0M3 Specifications

Type	Description
Series:	RB
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	330 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	50A
DC Resistance (DCR) (Max):	1.2mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.992" L x 2.480" W (76.00mm x 63.00mm)
Height (Max):	3.228" (82.00mm)
Package / Case:	Vertical, 6 PC Pin

Please confirm the specifications of the products when ordering.
