B82726E6243A041

B82726E6243A041

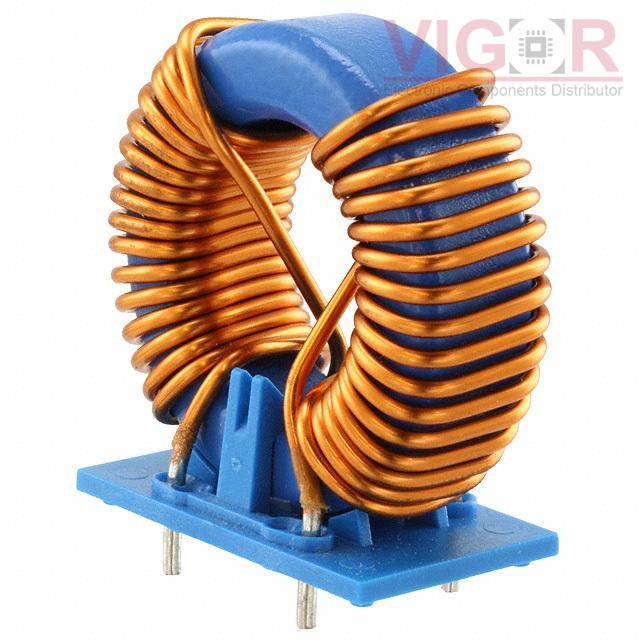

Image is for reference,
please contact us to get the real picture

Part No :

B82726E6243A041

Manufacturer
TDK EPCOS
Description
COMMON MODE CHOKE 1MH 24A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
B82726E6243A041 PDF
Availability
78 pieces
Unit Price
$10.48000

Current price of B82726E6243A041 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82726E6243A041 Specifications
Type Description
Series:B82726
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):24A
DC Resistance (DCR) (Max):2.3mOhm (Typ)
Voltage Rating - DC:1000V (1kV)
Voltage Rating - AC:600V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:UR
Features:-
Mounting Type:Through Hole
Size / Dimension:1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max):1.772" (45.00mm)
Package / Case:Vertical, 4 PC Pin
