PM3700-80-RC

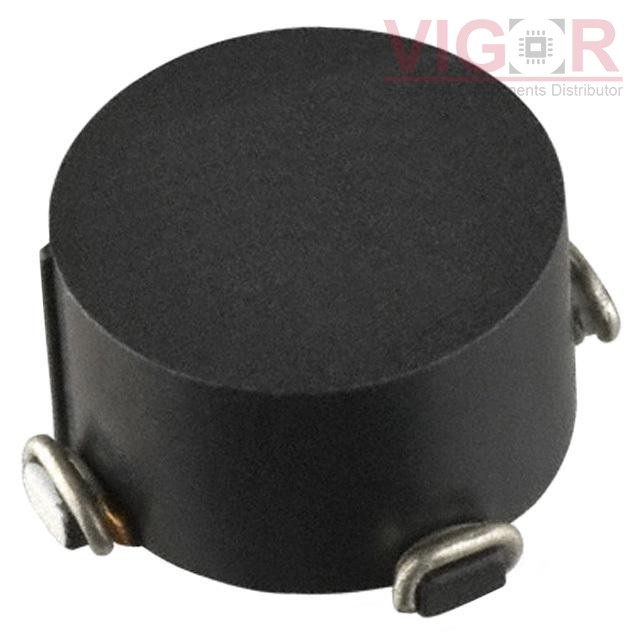

Image is for reference,
please contact us to get the real picture

Part No :

PM3700-80-RC

Manufacturer
J.W. Miller / Bourns
Description
CMC 20MH 1A 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
PM3700-80-RC PDF
Availability
4223 pieces
Unit Price
$3.09000

Current price of PM3700-80-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:PM3700
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:20 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1A
DC Resistance (DCR) (Max):250mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max):0.450" (11.43mm)
Package / Case:Horizontal, 4 PC Pad
