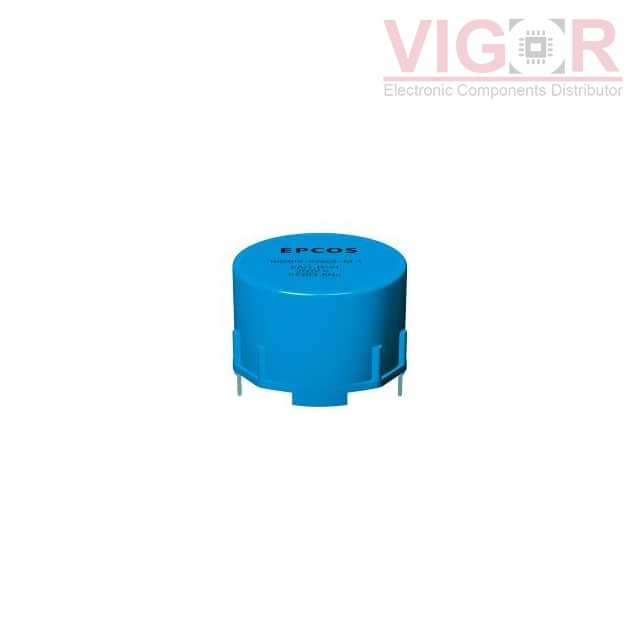

B82615B2402M001

Image is for reference,
please contact us to get the real picture

Part No :: B82615B2402M001

Manufacturer: TDK EPCOS

Description: CMC 1.5MH 4A 2LN TH PFC

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: B82615B2402M001 PDF

Availability: 0 pieces

Unit Price: ~~$5.65675~~

Current price of B82615B2402M001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82615B2402M001 Specifications

Type	Description
Series:	B82615
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	220mOhm (Typ)
Voltage Rating - DC:	350V
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	PFC
Mounting Type:	Through Hole
Size / Dimension:	1.732" L x 1.669" W (44.00mm x 42.40mm)
Height (Max):	1.181" (30.00mm)
Package / Case:	Horizontal, 4 PC Pin
