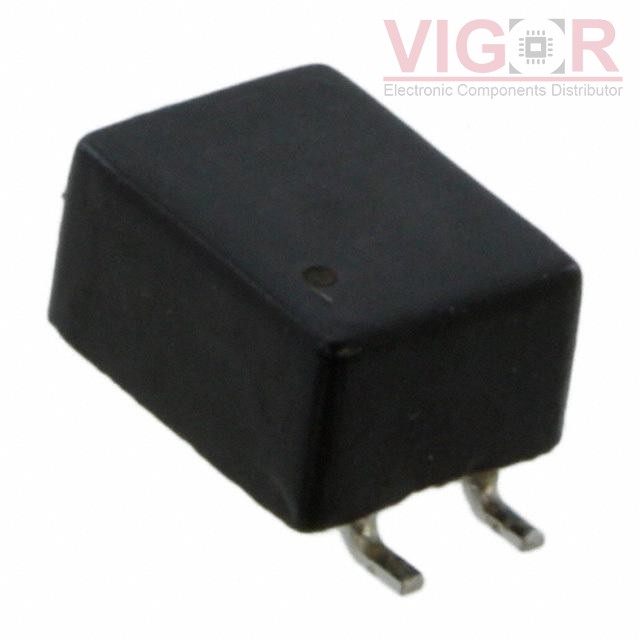

DR331-253AE

Image is for reference,
please contact us to get the real picture

Part No :: DR331-253AE

Manufacturer: J.W. Miller / Bourns

Description: CMC 25UH 500MA 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 22 - Jul 26 2025

DataSheet: DR331-253AE PDF

Availability: 223 pieces

Unit Price: ~~$1.04000~~

Current price of DR331-253AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DR331-253AE Specifications

Type	Description
Series:	DR331
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	25 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	200mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 135°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.287" L x 0.213" W (7.30mm x 5.40mm)
Height (Max):	0.197" (5.00mm)
Package / Case:	Horizontal, 4 Flat Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

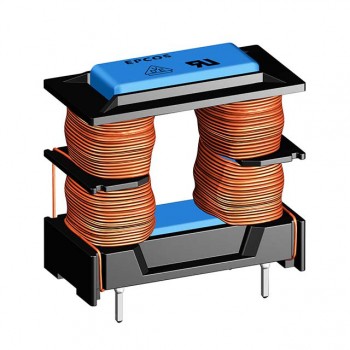

B82733V2701B001

CMC 100MH 700MA 2LN TH

HOT

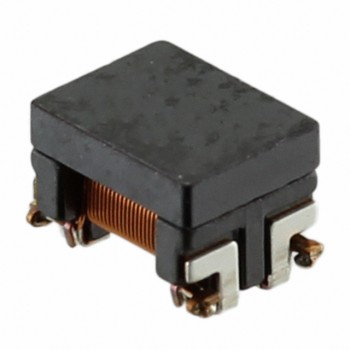

ACT1210L-201-2P-TL00

CMC 200UH 70MA 2LN SMD

HOT

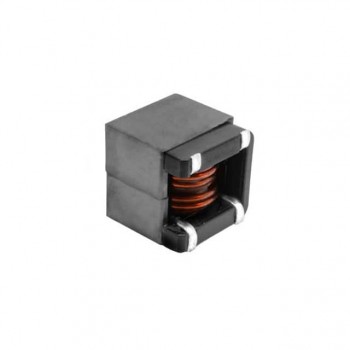

PA5141.505NLT
