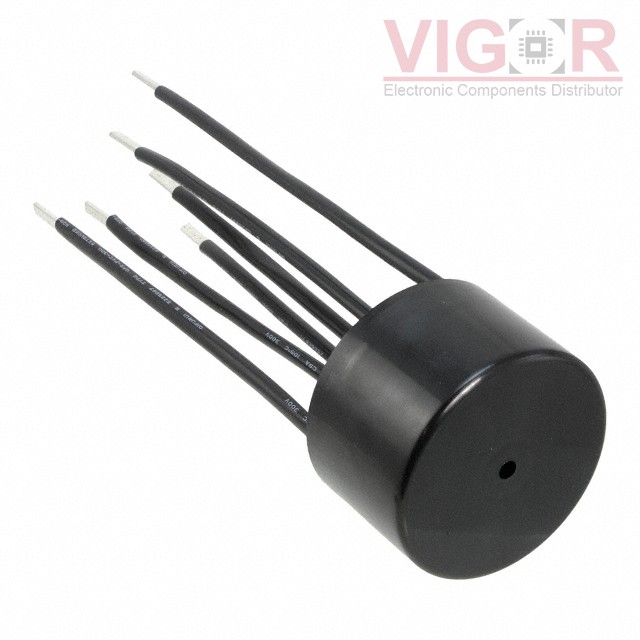

RD8137-64-0M5

Image is for reference,
please contact us to get the real picture

Part No :: RD8137-64-0M5

Manufacturer: Schaffner EMC, Inc.

Description: CMC 500UH 64A 3LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: RD8137-64-0M5 PDF

Availability: 0 pieces

Unit Price: ~~$48.40000~~

Current price of RD8137-64-0M5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RD8137-64-0M5 Specifications

Type	Description
Series:	RD
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	500 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	64A (Typ)
DC Resistance (DCR) (Max):	1.35mOhm (Typ)
Voltage Rating - DC:	850V
Voltage Rating - AC:	600V
Operating Temperature:	-25°C ~ 110°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	3.150" L x 3.150" W (80.00mm x 80.00mm)
Height (Max):	1.988" (50.50mm)
Package / Case:	-

Please confirm the specifications of the products when ordering.
