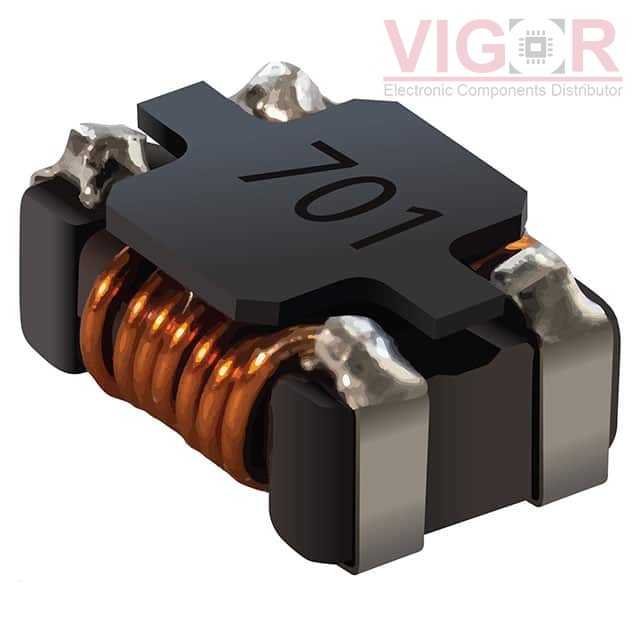

SRF9045A-701Y

Image is for reference,
please contact us to get the real picture

Part No :: SRF9045A-701Y

Manufacturer: J.W. Miller / Bourns

Description: INDUCTOR COMMON MODE

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: SRF9045A-701Y PDF

Availability: 37 pieces

Unit Price: ~~$2.28000~~

Current price of SRF9045A-701Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF9045A-701Y Specifications

Type	Description
Series:	SRF9045A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	700 Ohms @ 100 MHz
Inductance @ Frequency:	7.5 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.276" W (9.00mm x 7.00mm)
Height (Max):	0.177" (4.50mm)
Package / Case:	4-SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CM7060R501R-10

CMC 5A 2LN 350 OHM SMD

HOT

ACM2012E-121-2P-T01

CMC 300MA 2LN 120 OHM SMD

HOT

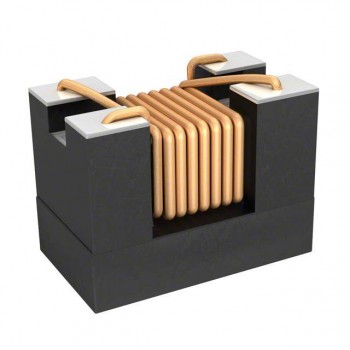

DLW21SN670HQ2L
