PL8200

PL8200

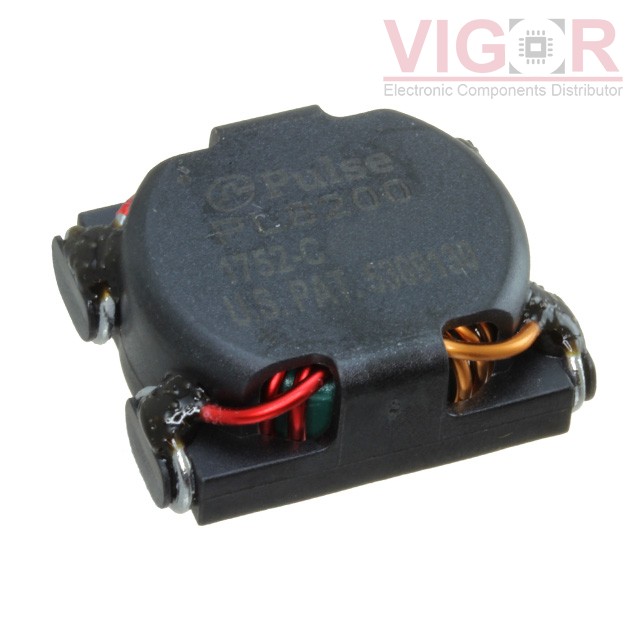

Image is for reference,
please contact us to get the real picture

Part No :

PL8200

Manufacturer
PulseR (iNRCORE
Description
COMMON MODE CHOKE 14A 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
PL8200 PDF
Availability
39 pieces
Unit Price
$11.77000

Current price of PL8200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PL8200 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):14A
DC Resistance (DCR) (Max):8mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 130°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max):0.500" (12.70mm)
Package / Case:Horizontal, 4 PC Pad
