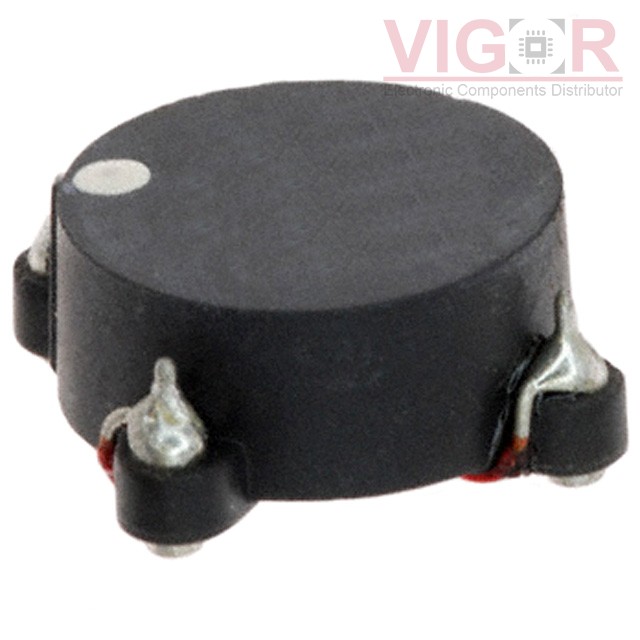

CM6560R-185

Image is for reference,
please contact us to get the real picture

Part No :: CM6560R-185

Manufacturer: API Delevan

Description: CMC 1.8MH 1.9A 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: CM6560R-185 PDF

Availability: 204 pieces

Unit Price: ~~$14.06000~~

Current price of CM6560R-185 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM6560R-185 Specifications

Type	Description
Series:	CM6560R
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.8 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.9A
DC Resistance (DCR) (Max):	80mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max):	0.320" (8.13mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
