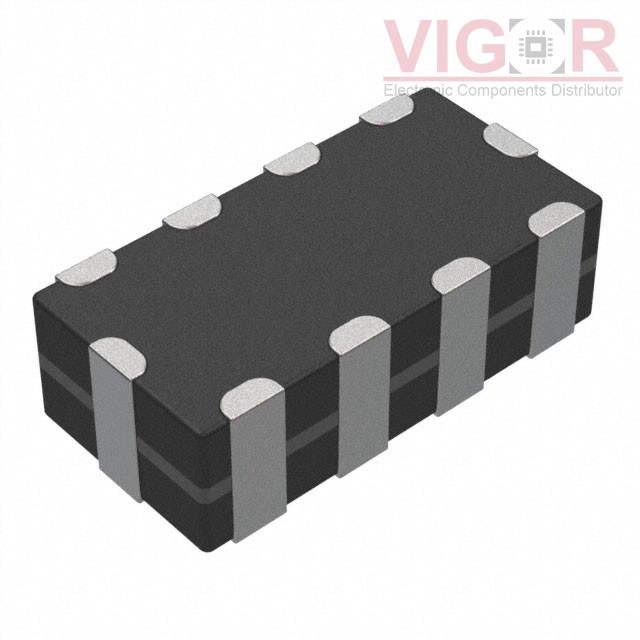

LCFE160804H101TG

Image is for reference,
please contact us to get the real picture

Part No :: LCFE160804H101TG

Manufacturer: Wickmann / Littelfuse

Description: CMC 4LN 100MA 100 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: LCFE160804H101TG PDF

Availability: 13422 pieces

Unit Price: ~~$1.02000~~

Current price of LCFE160804H101TG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LCFE160804H101TG Specifications

Type	Description
Series:	LCFE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	100 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	8Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	ESD
Mounting Type:	Surface Mount
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max):	0.022" (0.55mm)
Package / Case:	0603 (1608 Metric), 10 Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CM3440Z171B-10

CMC 20A 2LN 170 OHM TH

HOT

DLW31SN900SQ2L

CMC 370MA 2LN 90 OHM SMD

HOT

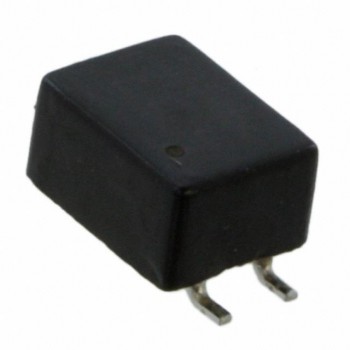

DR331-105BE
