PLT09HN2003R0P1B

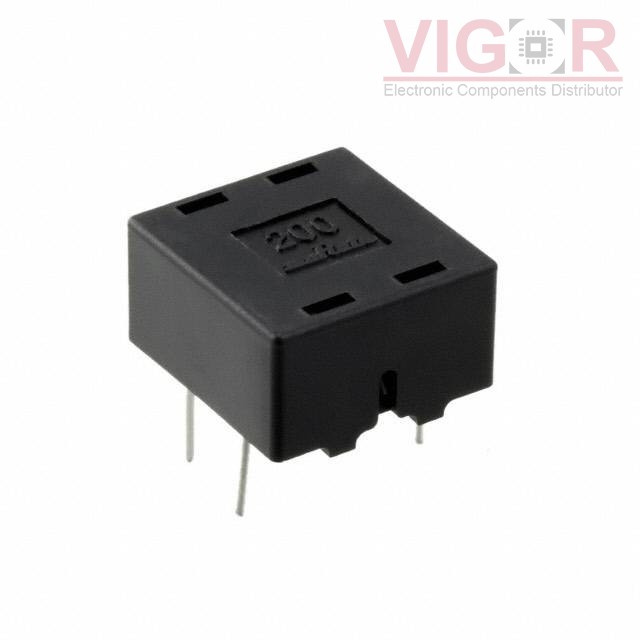

Image is for reference,
please contact us to get the real picture

Part No :: PLT09HN2003R0P1B

Manufacturer: TOKO / Murata

Description: COMMON MODE CHOKE 3A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: PLT09HN2003R0P1B PDF

Availability: 100 pieces

Unit Price: ~~$5.63000~~

Current price of PLT09HN2003R0P1B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PLT09HN2003R0P1B Specifications

Type	Description
Series:	PLT09
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	3A
DC Resistance (DCR) (Max):	30mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.551" L x 0.512" W (14.00mm x 13.00mm)
Height (Max):	0.315" (8.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
