SRF0504-302Y

SRF0504-302Y

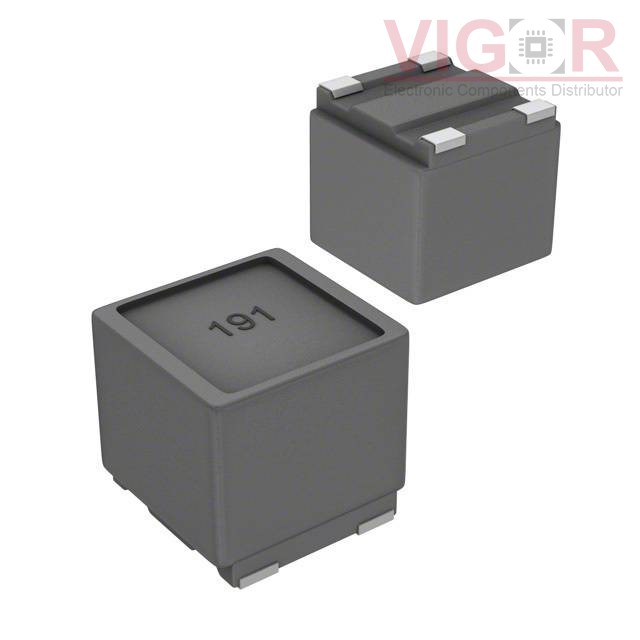

Image is for reference,
please contact us to get the real picture

Part No :

SRF0504-302Y

Manufacturer
J.W. Miller / Bourns
Description
CMC 6UH 500MA 2LN 3 KOHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
SRF0504-302Y PDF
Availability
8075 pieces
Unit Price
$1.47000

Current price of SRF0504-302Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF0504-302Y Specifications
Type Description
Series:SRF0504
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:3 kOhms @ 100 MHz
Inductance @ Frequency:6 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):200mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.205" L x 0.197" W (5.20mm x 5.00mm)
Height (Max):0.189" (4.80mm)
Package / Case:Horizontal, 4 PC Pad
