TM8116NL

TM8116NL

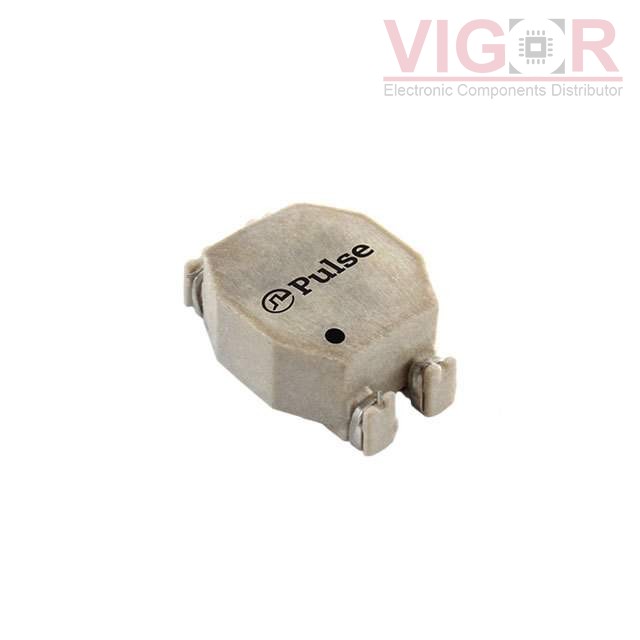

Image is for reference,
please contact us to get the real picture

Part No :

TM8116NL

Manufacturer
PulseLarsen Antenna
Description
CMC 470UH 700MA 2LN 800 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TM8116NL PDF
Availability
0 pieces
Unit Price
$3.06000

Current price of TM8116NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TM8116NL Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:800 Ohms @ 100 MHz
Inductance @ Frequency:470 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):700mA
DC Resistance (DCR) (Max):300mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.260" L x 0.248" W (6.60mm x 6.30mm)
Height (Max):0.161" (4.10mm)
Package / Case:Horizontal, 4 PC Pad
