B82720A2301N040

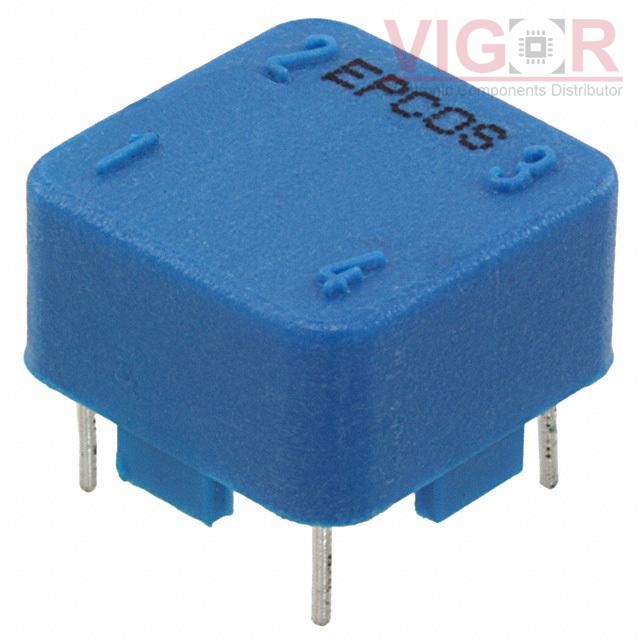

Image is for reference,
please contact us to get the real picture

Part No :: B82720A2301N040

Manufacturer: TDK EPCOS

Description: CMC 12MH 300MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: B82720A2301N040 PDF

Availability: 432 pieces

Unit Price: ~~$2.98000~~

Current price of B82720A2301N040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82720A2301N040 Specifications

Type	Description
Series:	B82720
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	12 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	1.1Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.559" L x 0.559" W (14.20mm x 14.20mm)
Height (Max):	0.380" (9.65mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
