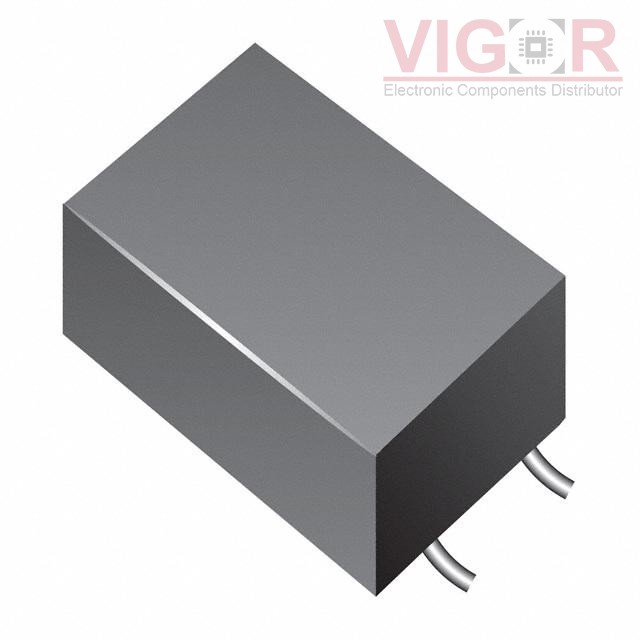

DR221-223AE

DR221-223AE

Image is for reference,
please contact us to get the real picture

Part No :

DR221-223AE

Manufacturer
J.W. Miller / Bourns
Description
CMC 22UH 250MA 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
DR221-223AE PDF
Availability
2161 pieces
Unit Price
$1.25000

Current price of DR221-223AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DR221-223AE Specifications
Type Description
Series:DR221
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):250mA
DC Resistance (DCR) (Max):230mOhm
Voltage Rating - DC:50V
Voltage Rating - AC:100V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max):0.130" (3.30mm)
Package / Case:Horizontal, 4 Flat Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PA3747.206NL

PA3747.206NL

COMMON MODE CHOKE 1A 2LN TH
HOT RN216-1-02-10M

RN216-1-02-10M

CMC 10MH 1A 2LN TH
HOT ACM4520V-231-2P-T00

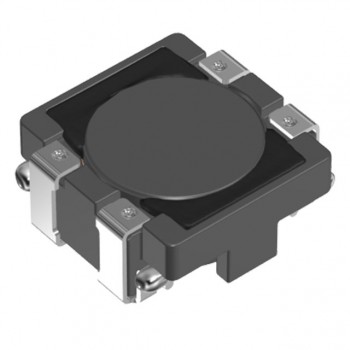

ACM4520V-231-2P-T00
